Air Gun for Sealant
DH1
- Market
-
-
Automotive Market
Used for vehicle powertrains and electrical components, construction machines, and marine vessels.
-
Electronics Market
Used for electrical appliances such as mobile phones and computers.
-
Public Industrial Material Market
Used for infrastructure, construction, and general machines.
-
- Function
-
-
Cartridge gun
-
※Membership registration or login is required to view SDS / technical materials.
Features / Technology
- Reduces the workload of manual application.
- Can also be used for application with a needle nozzle.
- Requires no power supply.
- Enhances safety performance by adding a safety valve.
Outer dimensions
W293×D71×H205 mm * Not including regulators
Weight
770 g * Not including regulators
Drive Sources
Clean dry air: 0.4 MPa or more
Suitable Materials
Cartridge-type air gun: General cartridge containers Air gun for tube: 100 or 150 g tubes containing moisture-curing sealant, adhesive, etc.
- ※In order to use tube material, a tube attachment of the proper tube size should be selected due to the differences in screw shape at the tube tip.
- ※Use the air regulator that comes with the air gun to adjust air pressure.
Product video

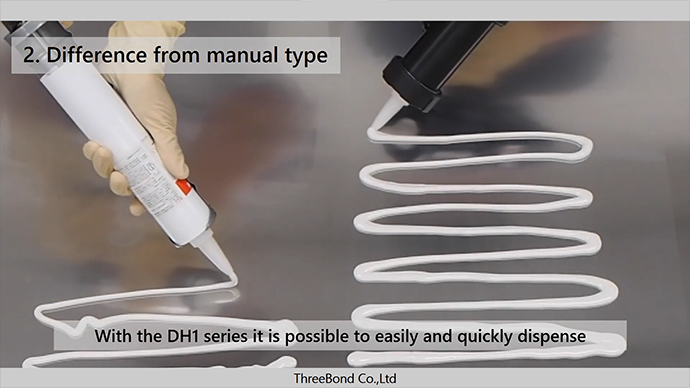

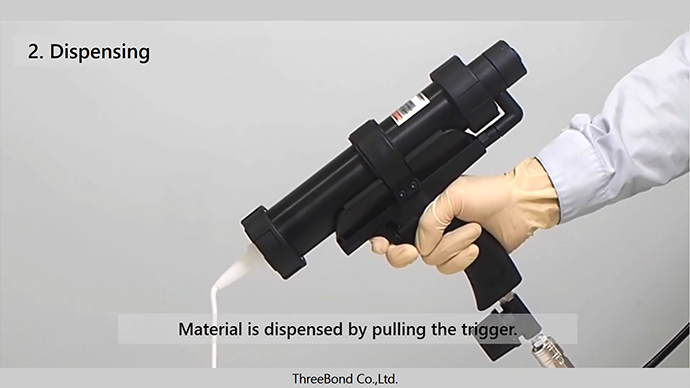

DH1series Air Gun for Sealant
DH1series Air Gun for Sealant - User's Manual
