Applicator for Anaerobic Sealants
Automatic rotary applicator : RTM2
- Market
-
-
Automotive Market
Used for vehicle powertrains and electrical components, construction machines, and marine vessels.
-
Electronics Market
Used for electrical appliances such as mobile phones and computers.
-
Public Industrial Material Market
Used for infrastructure, construction, and general machines.
-
- Function
-
-
Dispenser
-
Linear application
-
Supports moisture-curing
-
※Membership registration or login is required to view SDS / technical materials.
Features / Technology
- The rotor will apply a material to the inner surface of a cylinder.
- New slim application head makes it possible to dispense materials in holes with a narrow pitch.
- Rotor rotation detection and output are included.
- Contains a default braking function to prevent liquid splatter in the event of fast rotor rotation.
Outer dimensions
RTM2 application head: W32×D313.6×H98 mm, Pressure feed tank (PV2 tank): W252×D315×H516 mm
Weight
RTM2 application head: 0.93 kg, Pressure feed tank (PV2 tank): About 6.7 kg
Drive Sources
RTM2 application head: 24VDC max2A, Material discharging valve: Clean dry air: At least 0.3 MPa, Pressure feed tank (PV2 tank): Clean dry air: 0.1 to 0.3 MPa, Remaining amount detection sensor: 10 to 36VDC
Suitable Materials
Low to medium viscosity (up to 3.0 Pa·s)
Suitable packaging
Anaerobic sealants of the TB1386 series
- ※External control equipment is required to operate the RTM2 head (the material discharging valve and motor).
- ※The outer dimensions, weight, and specification of RTM2 head vary depending on the customer requirements.
- ※Prepare an solenoid valve for driving the material discharging valve and tubing for pressure feeding material separately.
Product video

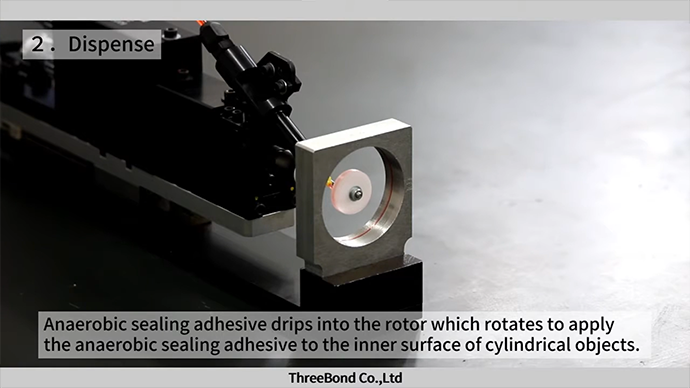

RTM2

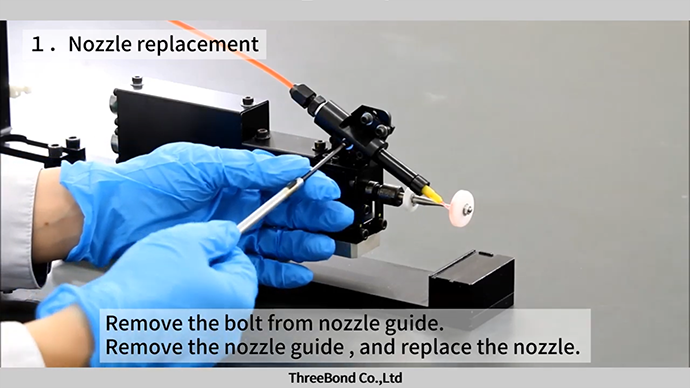

RTM2 Maintenance video
