Discharge Valve for Surface Applications
RV-SN Series
- Market
-
-
Automotive Market
Used for vehicle powertrains and electrical components, construction machines, and marine vessels.
-
Electronics Market
Used for electrical appliances such as mobile phones and computers.
-
Public Industrial Material Market
Used for infrastructure, construction, and general machines.
-
- Function
-
-
Supports moisture-curing
-
Surface application
-
Valve
-
※Membership registration or login is required to view SDS / technical materials.
Features / Technology
- Special valve to apply a material in plane-like or band-like form (Flat surface dispense).

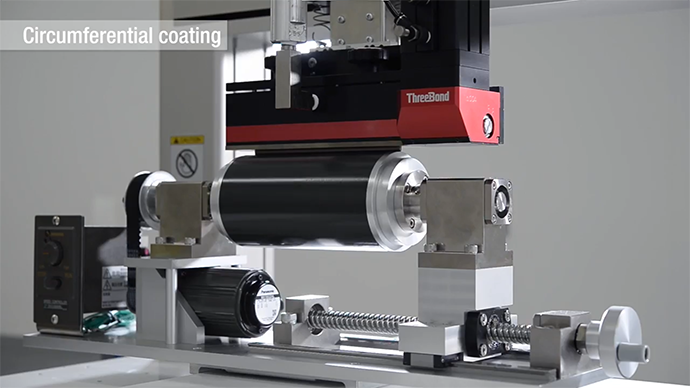

- Enables application of a material to a circumference, flat plane, or strip.
- Enables thin film coating (from 100 µm: data obtained from our experiments).
Outer dimensions
RV05-SN50：W161×D86.5×H124 mm, RV10-SN100：W211×D86.5×H124 mm, RV15-SN150：W261×D86.5×H124 mm
Weight
RV05-SN50：2.4 kg, RV10-SN100：2.6 kg, RV15-SN150：2.9 kg
Drive Sources
Clean dry air: 0.3 to 0.6 MPa
Suitable Materials
Moisture curing sealants and adhesives of the ThreeBond 1200 and ThreeBond 1500 series, One-component epoxy resins of the ThreeBond 2200 series, UV curing resins of the ThreeBond 3000 and ThreeBond 3100 series
- ※Specify a nozzle size with reference to the following order example when you place an order.
- ※Prepare an external solenoid valve separately before use.
Product video
RV-SN
