Dispenser for Tube-packaged Materials

Air dispenser tank (minicoater C5)

Market

Automotive Market

Used for vehicle powertrains and electrical components, construction machines, and marine vessels.
Electronics Market

Used for electrical appliances such as mobile phones and computers.
Public Industrial Material Market

Used for infrastructure, construction, and general machines.

Function

※Membership registration or login is required to view SDS / technical materials.

Features / Technology

This dispenser is suitable for the application of various materials with a wide range of viscosity and reduces the workload of manual application.
Use of the tube dispenser tank enables application of a material in a tube.
Minicoater C5 has two operation modes. Timer-controlled discharge and continuous discharge as well as a vacuum function.

Outer dimensions

Tank for 100 g tube: φ45×200 mm,Tank for 150 g tube: φ60×210 mm,Minicoater C5: W190×D136×H72.5 mm

Weight

Tank for 100 g tube: 334 g,Tank for 150 g tube: 466 g,Minicoater C5: 1.7 kg

Drive Sources

Clean dry air: 0.01 to 0.49 MPa, 100 to 240 VAC, 50/60 Hz

Suitable Materials

Moisture curing sealants and adhesives of the ThreeBond 1200 series, etc.

Suitable packaging

100 g tube, 150 g tube

※An adapter suitable for the tube should be selected because the tube tip varies in shape for each tube.
※The needle adapter and needle in the photo are optionally available.

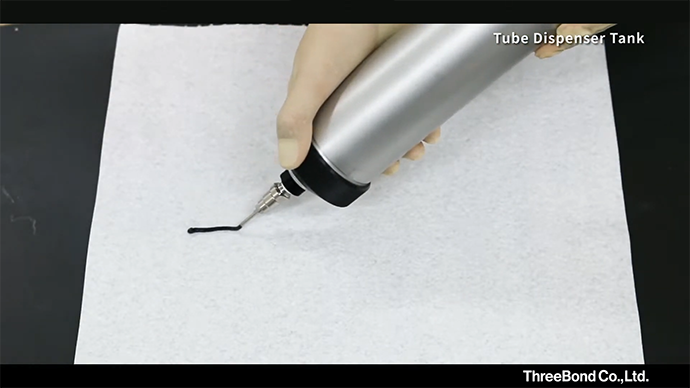

Tube dispenser tank
